FleXcroll, Flexible and Accessible Custom Scroll Bars

A Cross Browser* and Standards Compliant Custom ScrollBar Script by Hesido

featuring touch scroll for iPhone Safari

Introduction

You sometimes need custom scrollbars to go with your design intensive web-page, and I have come up with a cross-browser javascript solution that let's you use (X)HTML without having to resort to Flash. Custom scrollbars do not have to be inaccessible: fleXcroll supports mouse-wheel and keyboard scroll (from version 1.5.0), and text selection aid (from version 1.7.5) so people can text-select overflowed contents, and it also supports iPhone touch scrolling inside overflow: auto divs, making it behave almost the same as (and in some cases better than(!)) OS default scroll bars. Even with all its features, fleXcroll will not be able to satisfy some users, so that's why I made it fully unobtrusive, making it a solution that allows content to be accessible when javascript is turned off, and it does a pretty good job of behaviour abstraction from html: you write your html like the way you are used to, except there are a few things you need to be careful about, and fleXcroll handles the rest. This gives you an advantage, you don't write specific html that would only look right when fleXcroll is active; your content should look right even when you revert to a non-fleXcroll version of your site. Thanks to asyncore for giving my script its name. Also, a big thanks goes out to sherool@my.Opera for suggestions. Additional thanks to filbo, userDude, burnout426@my.Opera for their support. Last but not least: there's little I can do to show my gratitude to Yusuf Cem Kaplan@Blesseville, who came up with fleXcroll's slick logo, and greetings to all who have bought licenses either to show support or use fleXcroll in a commercial product.

Samples

Please take a look at the source of this html page for some examples on how to use fleXcroll in a dynamic setting. fleXcroll can cope with dynamic updates such as dynamic content injected via AJAX, and can be controlled from outside, and fleXcroll now provides transparent support for anchor id's:
Clear Test Div : Add P : Remove P : Switch wide/narrow
Move Scrollbars relatively : Scroll content to 50px left, 50px down

Download

Download the script here: If you get an error message while trying to download the file, please diable any web-anonymizer software that blocks referral headers, some internet security software may also disable the referral header.

Stay Up-To-Date

I constantly work on fleXcroll to make it better. You can follow fleXcroll on twitter (recommended), or subscribe to my feed.

Guides

• fleXcroll basic usage guide
• fleXcroll programming guide
• Some example fleXcroll usage

Some more points

Working to get it just right

It took quite a while for this script to mature. After some hard scripting work and lots of experiments, I managed to come up with a script that worked on Opera, Firefox, IE, now IE7Beta2 (even down to IE5.0 if you do not put borders around the actual custom scrolled element), that needs no extra markup whatsoever. You can apply it to any div with fixed width and height with no special pre-setting. Anyway, while I have yet to see a better accessible custom scrollbar (my personal view), it was not possible to make this as accessible as operating system default scroll-bars. But here is the catch: As the script needs no pre-setting and no extra markup, the scrollable elements will still be scrollable even when javascript is turned off, this time with OS default scrollers. You can also give your visitors a setting to turn your custom scrollbars off, store it in a cookie, so if they really hate this, they still can happily access your site.

Fees: Free for non commercial uses

You can use the script to enhance your personal site or implement it in non-profit community sites without paying a dime. A link to hesido.com is much appreciated, but not required. These type of websites include: Charity websites, personal sites, blogs, etc.

Important: Taxes may apply based on your location.

For commercial uses which include but is not limited to any paid work whether you are charging extra for the script or not, you have to pay $30 (U.S.D.) for a single website, $25 extra for a second website, and another 15$ extra for unlimited number of websites ($70 U.S in total for the unlimited web-site license). Commercial website means any website involving in commercial activities (a company website, web-design portfolio site, an online shop etc.) You can show your support to hesido.com by buying a license, even if you do not plan on using it commercially. Single website licenses can later be upgraded to unlimited use license, with the fee paid for the single website is counted towards your unlimited use license, e.g. if you already own a single website license, you can ugrade to the unlimited use license for $40 U.S.

It covers your back when it can't work!

Degrading is the most important feature of the script, it degrades excellently without breaking anything if the user has turned off javascript, or when the User Agent has no javascript support. Why not try this page with Javascript turned off? You'll see the content in the srollable elements are still accessible.

Example Usage

The easiest way to play with and learn about fleXcroll is using Opera: Just save this page with "html with images" in a folder, and all the required files, the images, the javascript files will be saved there locally for you to temper with. (However this will obviously not save IE png hack images, you can optionally extract them from the archive)

Let's say we have an element with the id 'mycustomscroll'. Here is the necessary CSS (exluding the scroll bar styles):

Styling the target div element

CSS Style

#mycustomscroll {
	width: 290px;
	height: 330px;
	overflow: auto;
	position: relative;
	}

Position:relative is only needed because IE has a bug with overflow:auto elements as general. The script also supports elements that are floated or absolutely positioned, and elements with percentage widths. Make sure you have the scroll bar styles and script in the head of the document, either linked or embedded in the html file

Starting fleXcroll: method 1 (preferred method)

Standard HTML

<div id='mycustomscroll' class='flexcroll'>
	SOME BIG CONTENT THAT WOULD CAUSE SCROLL BARS
</div>

When you add the class 'flexroll' to your divs, fleXcroll will automatically run on these elements on window.onload. You do not have to add any extra piece of javascript (as of v1.9.2).

If you do not want to wait for total page load, which can take very long on graphics-intensive pages, you can add a 'signalling element' with the id: 'flexcroll-init' at the end of the document. The 'signalling' element can be an empty element, or it can be any element at the end of the body of your html. You can view the html of this page and take a look at the end of the file to see an example and brief explanation.

Starting fleXcroll manually: method 2

This is a deprecated method and is no longer necessary. But if you think adding an extra element for fast execution is unnecessary, or your javascript framework has a better alternive to window.onload, you can use the following piece of script to start fleXcroll on your desired element. You can use Dean Edwards' rather clever domcontentloaded method.

Javascript

fleXenv.fleXcrollMain('mycustomscroll');

Other methods

More information can be found in the fleXcroll usage guide.

Styling the bars

For all browsers:

• The most basic style would be with background-colors.
• For the most basic style with images, you need 2 images, one for horizontal bar, one for vertical.
• You can also put background-image to scroll-bars base.
• You can add caps to the scroll bar bases, for this, 1 image that contains all 4 cap images is sufficient. (See the example files)
• You can make a flexible streching image for the whole scroll base, style it as if styling the bar with 1 vertical and 1 horizontal image.
• Make sure you style the bars so that the site is accessible if the user has turned off image loading. The example with red scrollbars is actually a bad one as it uses transparent PNG's and currently we don't have a decent fallback method for transparent images, so its contents would not be accessible if the user turned off the images, but that's not the case for the other two examples, so it's your own decision, if you use transparent pngs instead, accessibility is hampered on some conditions. Take a look at the two other examples than the red one for a more accessible approach.
• Make sure you add position: relative to all your floated elements within the fleXcroll targeted div, it fixes many nasty IE bugs.
• Visit here for fixing more IE styling problems.

For IE6 -only when you want to use alpha PNGs:

• IE6 cannot show the transparency of PNGs, for this to work you need the alpha image loader trick
• The styles to IE6 can be fed to IE6 using conditional comments
• Alpha image loader does not support image positioning so you have have seperate images for each style.
• All browsers can use the seperate images used by IE, but it is best to have the images tucked in together to minimize http calls, so I serve the advanced browsers. the combined images, while I server IE6 seperate images. I am only checking for IE6, IE7 handles PNG's alpha pngs really well. Hooray.

Important Notes

Browsers tested to work with fleXcroll

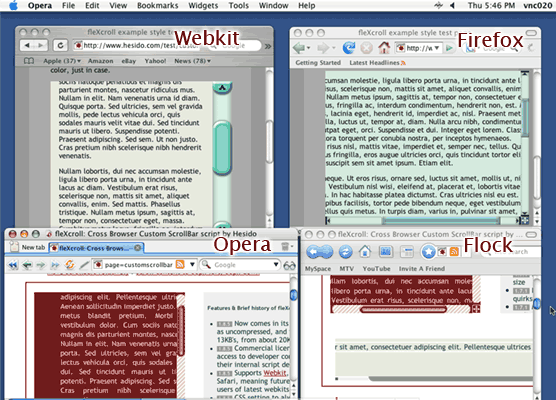

Safari for iPhone OS, Opera 8.5+, Firefox 1.5+ for PC and MAC and Linux, Webkit (MAC), IE5+ has been tested to work with fleXcroll. IE for Mac does not support fleXcroll, it is a discontinued product that has many scripting bugs, and it is blocked from using fleXcroll so IE users on Mac can also browse your content.

Rest of the Mozilla based browsers seem to behave nicely in fleXcroll. Older browsers that does not support the W3 document object model are left with non-fleXcroll version of your site, but they should be able to access the content without problems.

Safari 2.0.4 on Mac has a bug that is now fixed in the latest webkit builds. Safari users browse your site without fleXcroll, but they can access your content without problems due to the unobtrusive nature of fleXcroll. Latest webkit, from version 1.8.5, properly supports fleXcroll, meaning future Safari versions will also support fleXcroll. Safari users can download the latest Webkit to enjoy fleXcroll and the web in general, as Webkit fixes many annoying Safari bugs. Here's a picture of some of the Mac browsers that has proper support for fleXcroll.

Mac testing done using Browsrcamp's VNC server.

For an accessible and useable site

• Try to make your scrollbars recognizeable as scrollbars. You can go crazy with it, but make it look like a scrollbar nonetheless.
• Make your scrollbars big enough to be easily clicked and dragged.
• Use custom scrollbars when the look is more important than the content itself.

General considerations

• fleXcroll expects your documents to be well formed. I've seen that most problems when using fleXcroll arose from documents that are not conformant to specs: documents with missing closing tags etc.
• fleXcroll requires only very little javascript knowledge, it is easy to install and get it running. However, it does require you to have at least mediocre CSS knowledge to style the bars, and requires you to code your html properly.
• Try not using javascript solutions where accessibility is most important, while I made sure the scroll-bars are user friendly as possible, they cannot compete with the OS default scroll bars.
• Try to do flexible designs for your pages instead of going for pixel-perfect designs. You'll benefit in the end.
• But if you need exact control over your scroll bars, try to use scripts that degrades well when javascript is turned off, and works almost identical on all browsers. fleXcroll is a good candidate for that job.
• fleXcroll doesn't work well when the custom scroll element size is very small elements (about less than 100px tall or wide may cause problems)
• If you are using floated elements within the scroll area, due to an IE bug that causes floated element not to be scrolled, floated elements have to be styled with position: relative;, actually this fixes a lot of other IE problems not related with fleXcroll too, so I advise you use it for every floated element anywhere. To fix this and other IE related CSS bugs, please visit Position is Everything.
• Scroll bars may not look correct if you use border and padding in your scroll bar styles. Use images + background-color to style the bars
• This script works on Opera 8/9, Firefox (Mac+PC), Webkit, IE5, IE6, IE7Beta2, it does so without using any browser detection for its functions (except only for one place to fix an Opera8.x CSS display bug). It does *not* work for Safari (macintosh) due to bug concerning overflow: hidden scrollbar visibility which is now fixed in the latest builds, and version 1.8.5 and up supports the latest webkit, good news for Safari users.
• When working with horizontal scrollbars, keep in mind that fleXcroll only looks for the immediate children of our elements' width to see whether a horizontal scrollbar is needed due to performance reasons, so if a child of a child of our fleXcrolled div is horizontally big, but it doesn't enlarge its parent, horizontal scrollbars may not be created even if necessary. Just check out the examples and do your own testing for achieving correct results.
• Floats have to be manually cleared at the end of the div for fleXcroll to calculate the size properly, at least for now.

Standards mode

• In standards mode, the scrollers are drawn identical on all major browsers.

Quirks mode or IE 5.x

• In quirks mode, the element we want custom scrolls cannot have borders, otherwise the scrollbars may be obscured. Use a wrapping div instead that has the borders of the actual element will have no borders. It can, however, have a padding. fleXcroll compansates for the padding automatically

How To Order a fleXcroll License

You can receive information after sending me an email using the contact page, but if you want to make things fast, you can do the following:

Payment using FastSpring

This is the currently the only payment option:

• Unlimited use license payment through FastSpring
• Single Website license payment through FastSpring

I need the following information to produce a valid license for you, you'll receive a temporary key from FastSpring, and I'll prepare you a permanent license text using the following information:

• Type of license you'd like to buy
• To whose name will the license be registered to (could be either a person's name or a company's name.)
  • This is usually whoever is paying for the license, this may not necessarily be the site owner, but it is usually the webdeveloper.
• For which site (base url) you want fleXcroll be registered to (not required for unlimited license)
• To whose e-mail address you want the license text be sent to.

After you receive the license text

• If anything goes wrong and you lose or not receive the license text, you can re-request it and I'll send you again.
• You can then replace the public licence text with your personalized license text.
• If you are still not sure about the process, just drop me an e-mail using the contact page, and I'll contact you with proper explanations.

When you buy a license of fleXcroll, you'll receive all future versions of fleXcroll for no charge for the same type of license, so you will have access to all future versions of fleXcroll for no extra charge, and you will not be affected by price changes. If you like fleXcroll and you are using it for your non-commercial website, you can still show your support by buying a license.

Final Words

I hope you like this piece of code!
